SPRAY SUPPRESSANT KIT
& FITTING INSTRUCTIONS
DYNAPLAS TRUCK MUDGUARDS
Below are fitting instructions for installing the
onto a curved edge aluminium mudguard.
Part # SSKIT-P100R

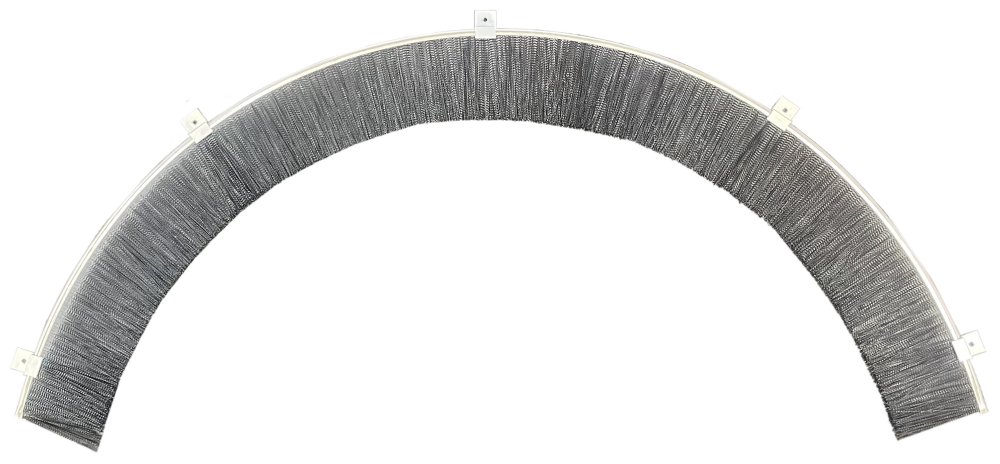

Spray Suppressant Kit comes with
2 x Pre formed arches with clips attached
10 x Aluminium rivets
This kit will fit P630, P470 mudguards
 Truck mudguard and brackets - Price List Click Here
Reseller, original equipment manufacturers, fleet and trade
please contact us for your discount Ph 02 9627 5944 |
|
 |
Ensure the 5 spray suppressant retaining clips
are spaced evenly around the suppressant, all
facing the same direction.
|
|
Position the suppressant evenly on the inside
of the mudguard & using the clip as a guide
drill a 5mm hole at the top clip position. |
|
Attach the clip to the mudguard with the supplied
rivet, with the head on the outside.
|
|
Drill & rivet the 4 remaining clips, working from
the centre out. |
